Toro 570Z4P-15VAN Spray Head 4″ Pop-Up with 15′ Variable Arc Nozzle -

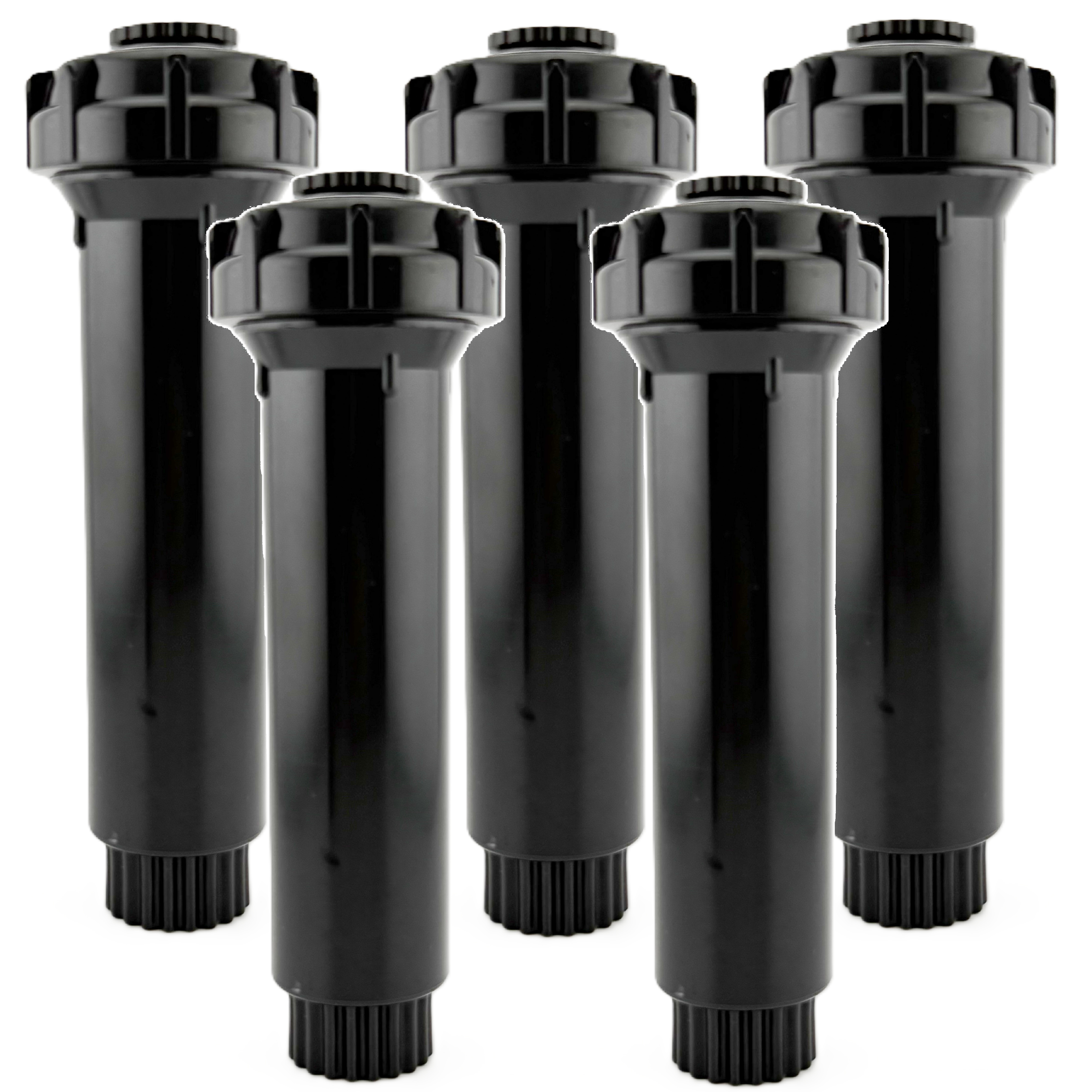

Toro 570Z4P-15VAN Spray Head 4″ Pop-Up with 15′ Variable Arc Nozzle
The Sprinkler Nut reminds you...
- All spray heads are identified by the height of the riser (the part that pops-up) and not by the overall length of the sprinkler body
- This 570Z4P-15VAN has a 4″ riser and the sprinkler body itself is 4-3/4″ long
Categorized In:
Description

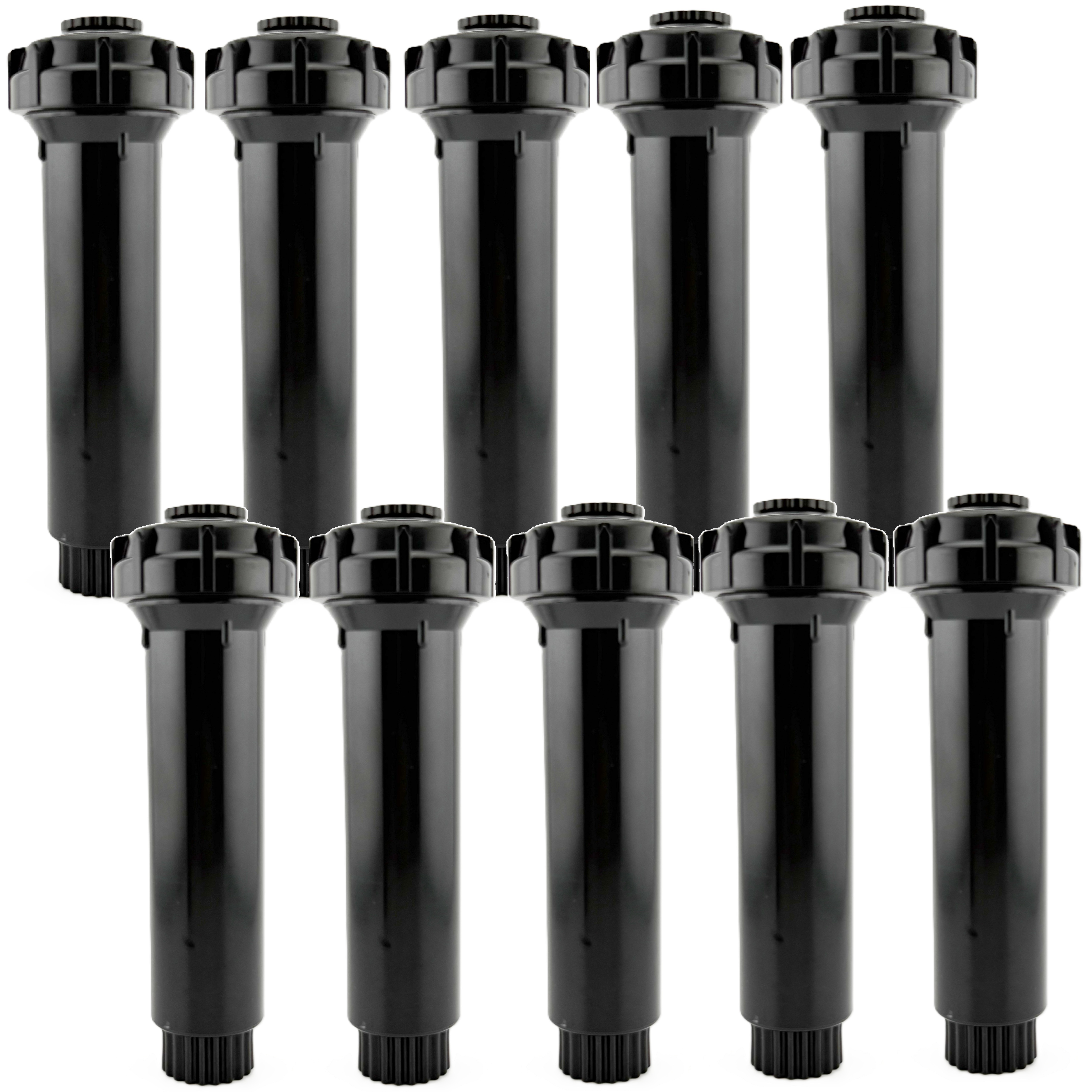

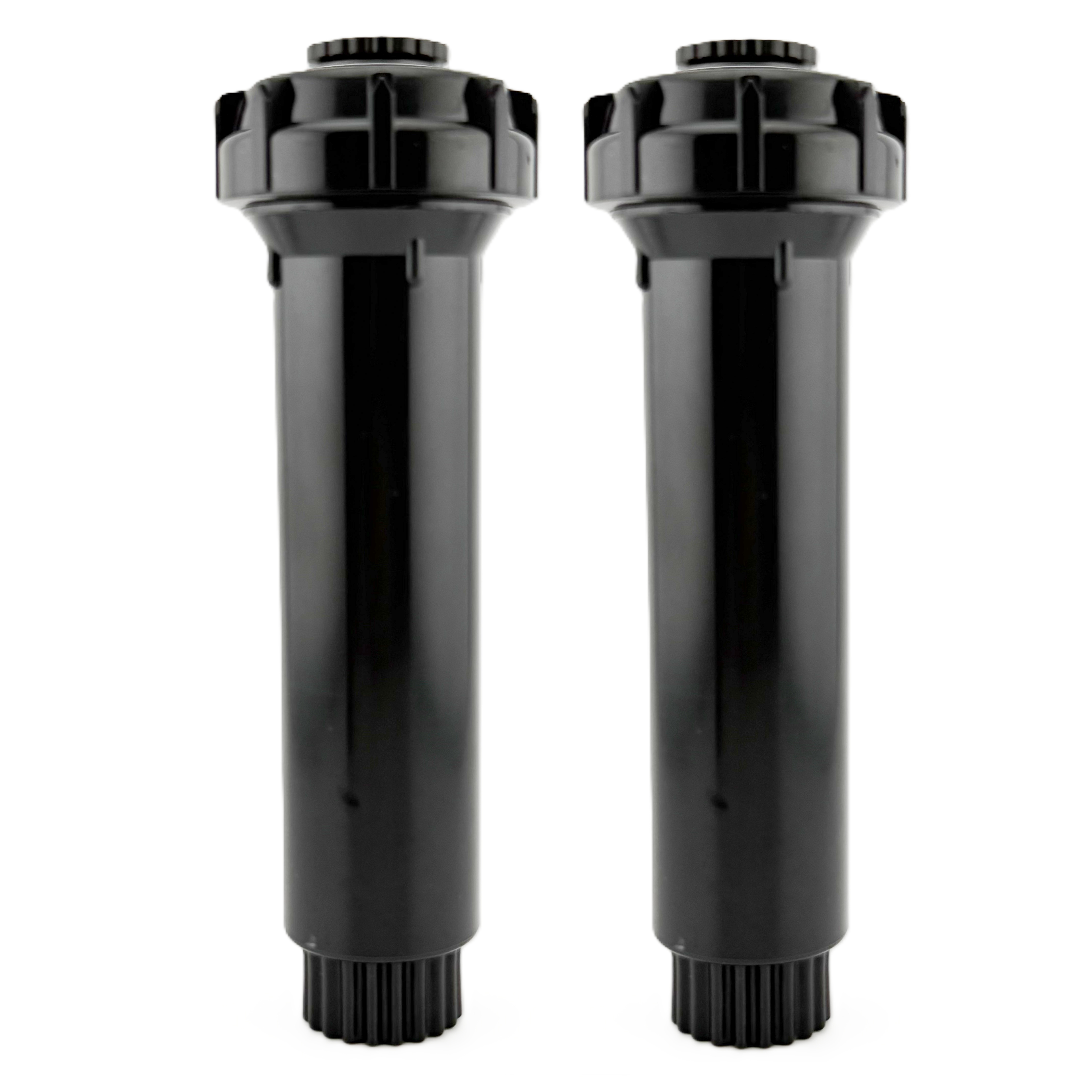

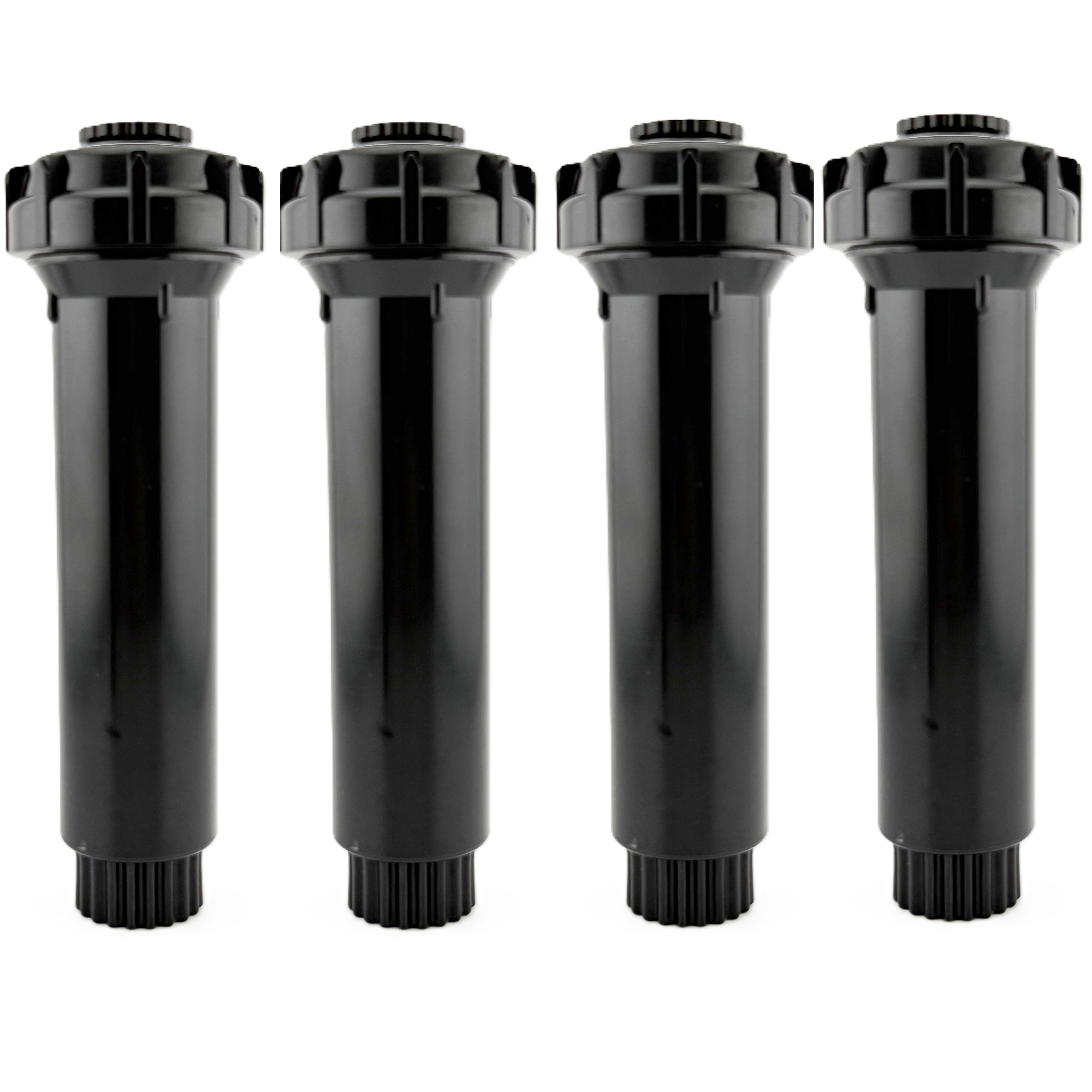

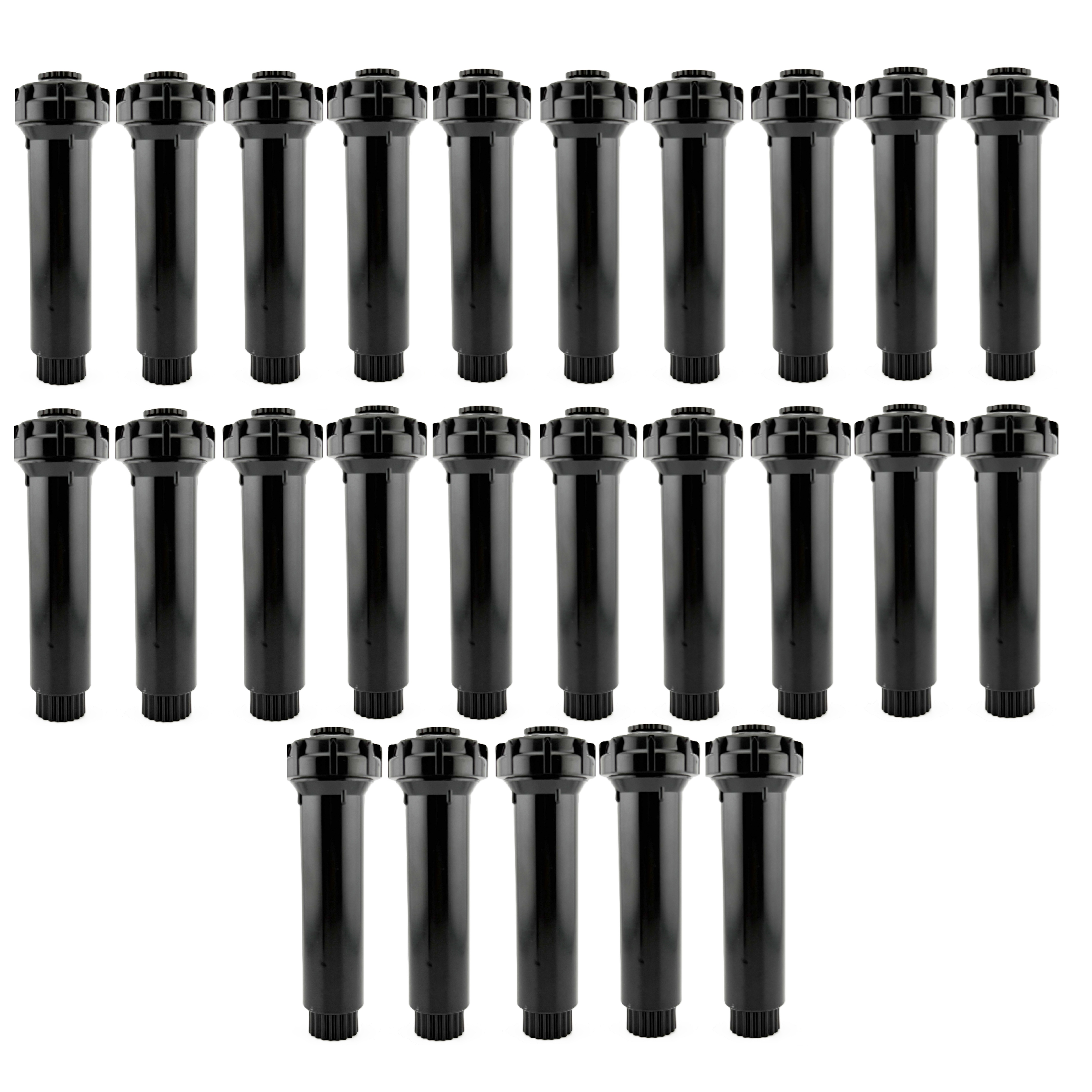

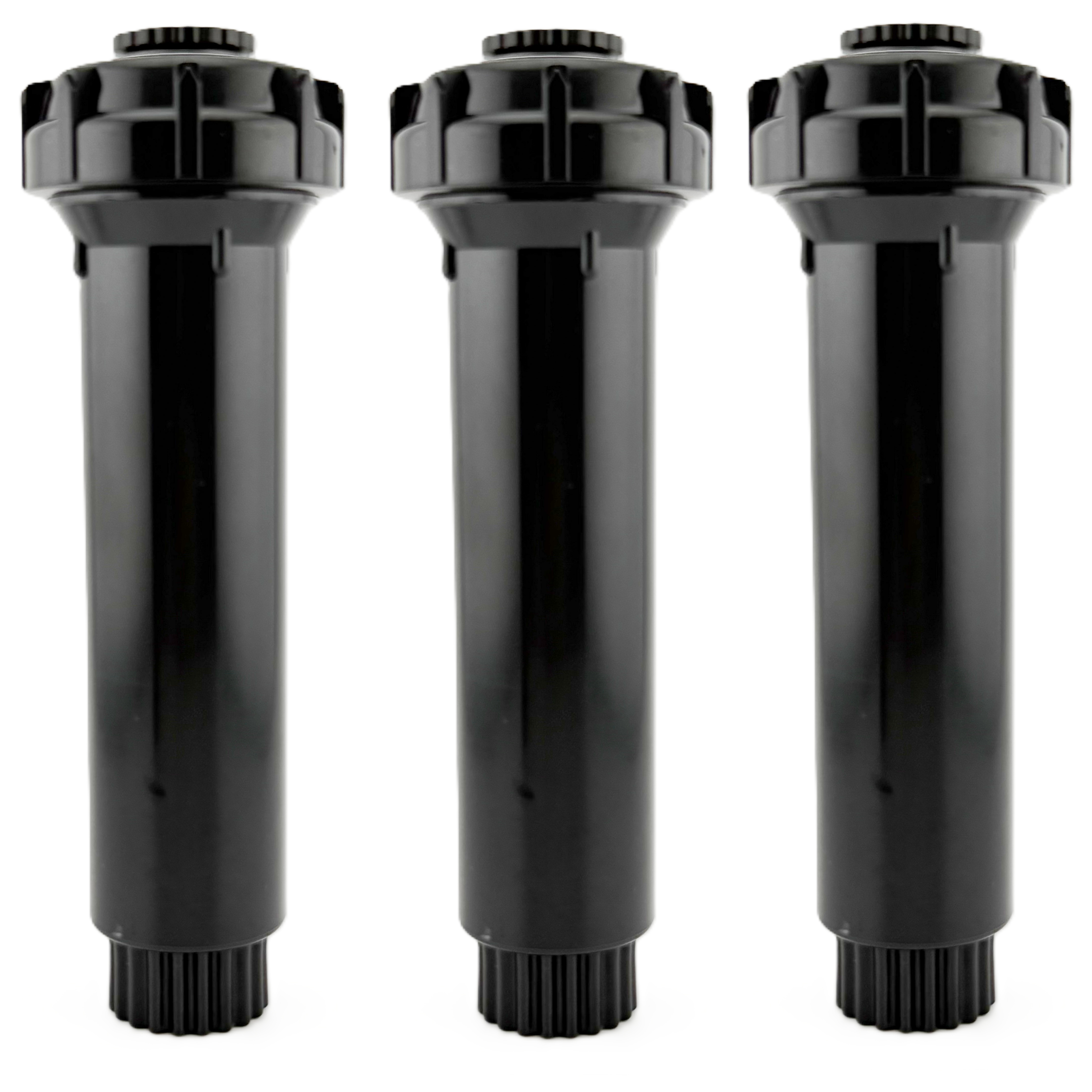

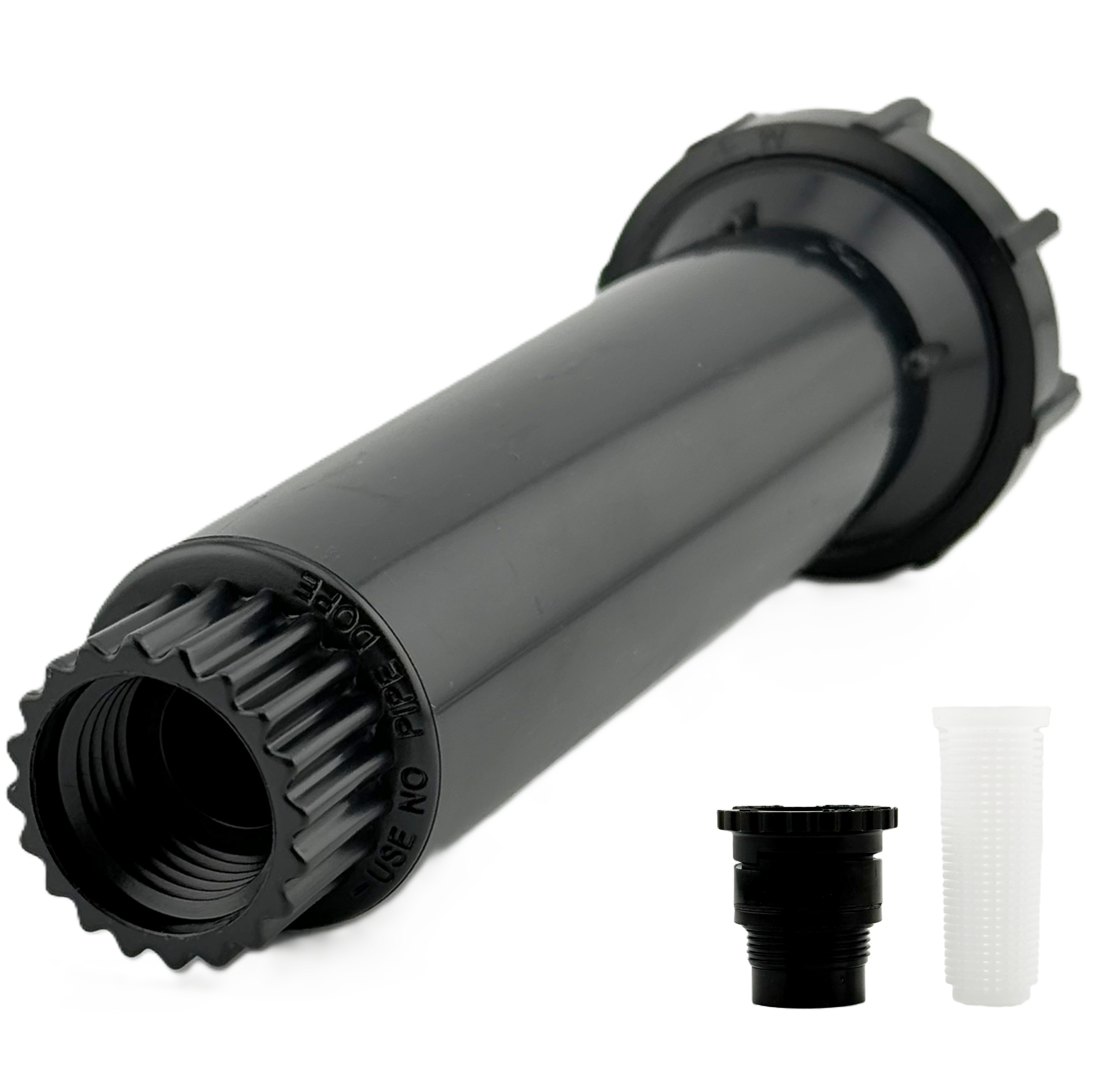

This is the Toro 570Z-4P spray head bundled with a pre-installed Toro 15VAN Nozzle and filter screen.
Toro 570Z sprinklers (also called spray heads or sprinkler bodies) provide professional-grade solutions for residential and commercial projects. These heads feature:
- Zero-Flush seal prevents water waste at start up
-
Factory installed X-Flow allows for spray head maintenance or component replacement without the need to turn off the system
-
X-Flow also restricts water loss by 99% if the nozzle is removed or damaged
- Corrosion-resistant stainless steel retraction spring
Sprinkler Specifications:
-
Maximum working pressure: 75 PSI
-
Recommended operating pressure range: 25-50 PSI
- Recommended operating pressure for spray nozzles: 30 PSI
-
Recommended operating pressure for rotating nozzles: 45 PSI
- Inlet size: 1/2″ FPT
-
Exposed diameter: 2″
- Body height: 4-3/4″
- Riser height: 4″
-
Radius: 2 feet to 26 feet
-
Flow rate: 0.5 – 4.5 gpm
TVAN15 Nozzle Specifications:
- Radius: 8’-17’
- Operating Pressure Range: 20-50 psi
- Arc Options: 0°-360° (infinitely adjustable)

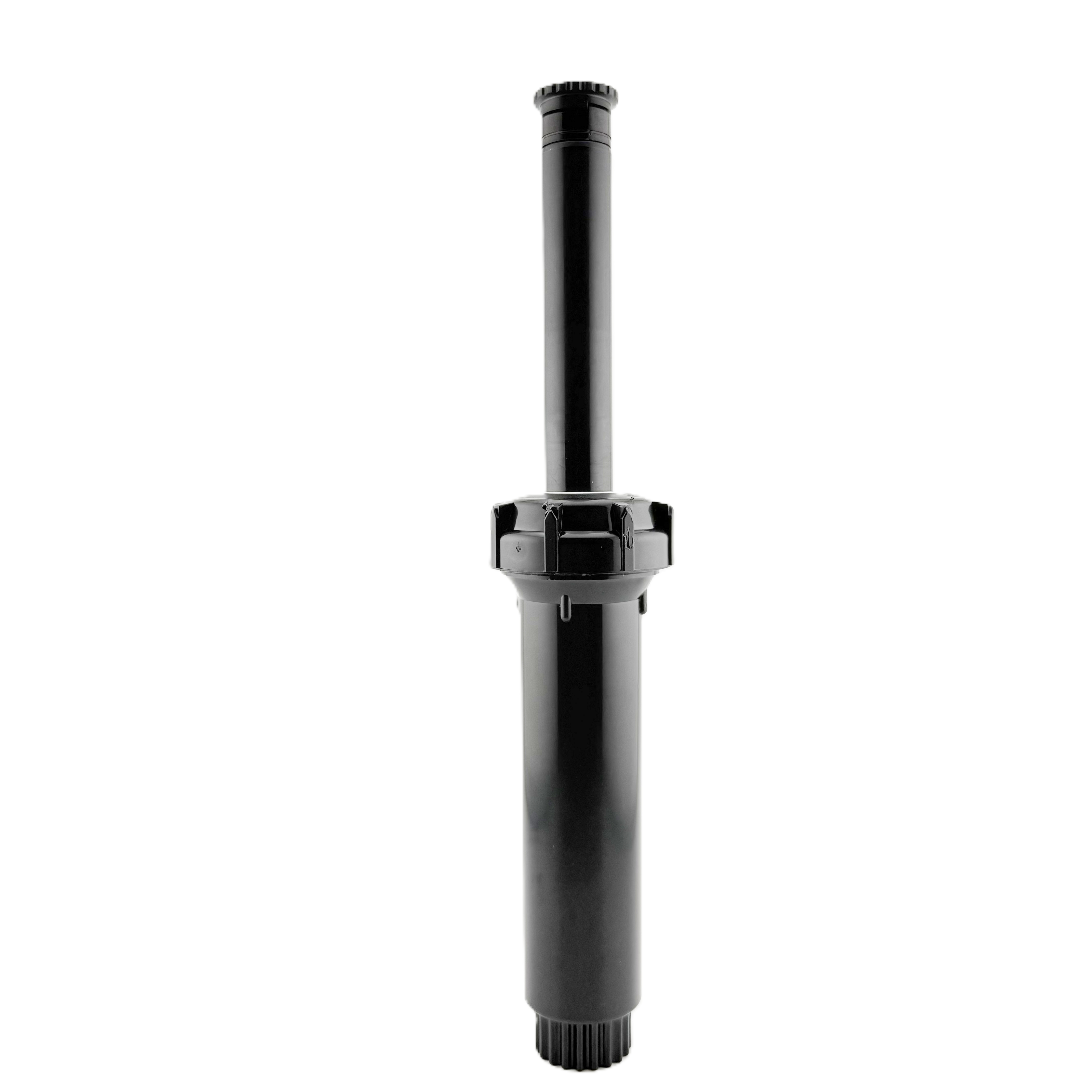

This Toro 570Z-4P has a 4″ riser. The sprinkler body itself is 4-3/4″ long. Please note that all spray heads are identified by the height of the riser and not by the overall length of the sprinkler body. A 4″ spray head means the riser is 4″. It is not the measurement of the overall length of the sprinkler.
Toro 570Z heads are compatible with Toro MPR Plus Spray Nozzles, Precision Series Nozzles, Variable Nozzles, Pro Fixed Nozzles or any other industry-standard male thread nozzles.

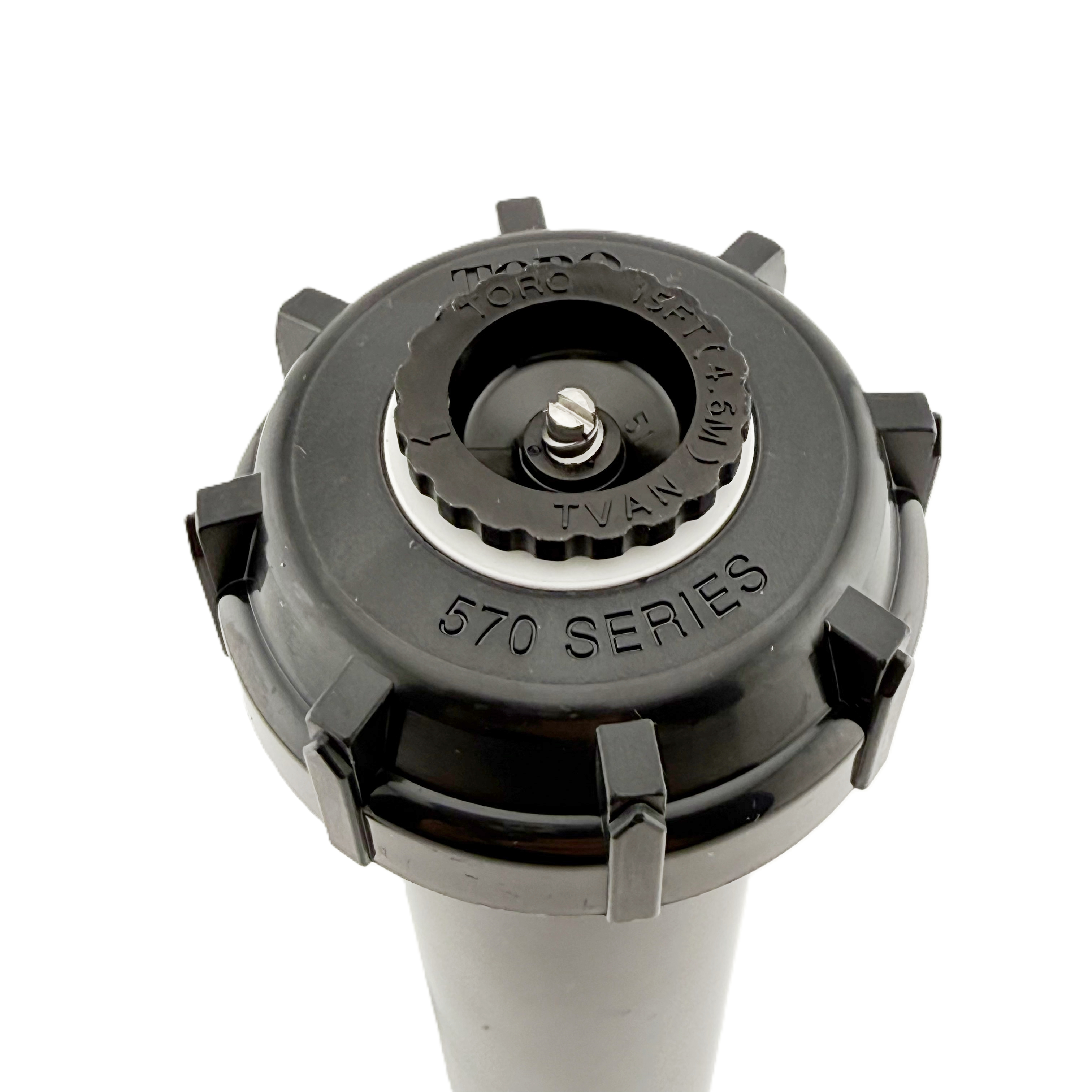

Every 570Z, regardless of the length (such as 570Z-4P, 570Z-6P, etc…), has a cap that says TORO 570 SERIES which is the name of the spray head series. It will not have the model number on it.
Need additional features like pressure regulation, a check valve or a longer sprinkler body? No problem! The Toro 570Z sprinkler head comes in a variety of different sizes such as 2″, 4″, 6″, 12″ and a shrub adapter.
Additional Info
| Weight | 4 oz |
|---|---|
| Item Dimensions | 4-3/4" body, 2" exposed surface diameter |
| Body Length | 4-3/4 inches |
| Riser Height | 4 inch |
| Inlet/Outlet or Port Size | 1/2 inch |
| Connection Type | Female Thread |
| Min Pressure | 25 PSI |
| Max Pressure | 75 PSI |
