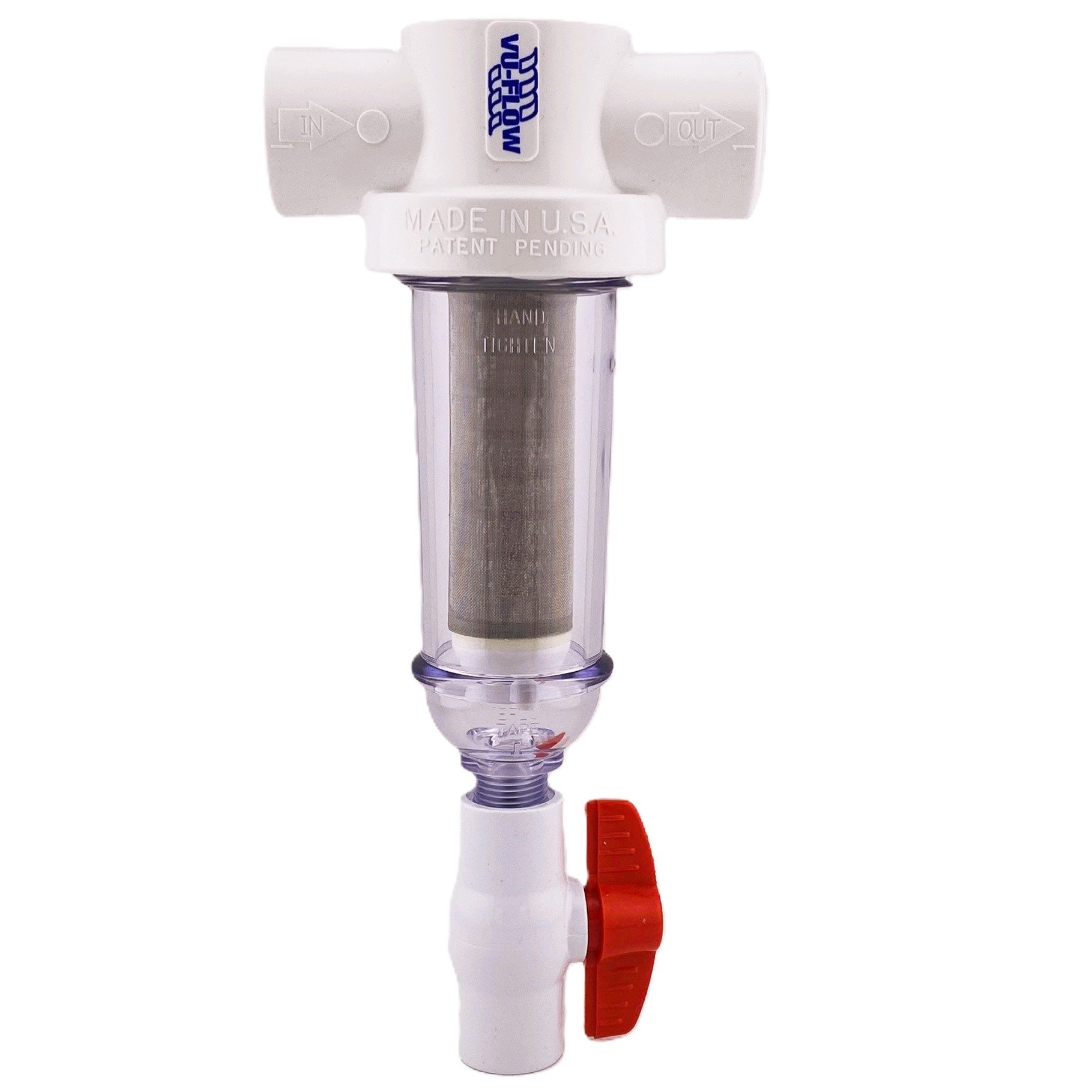

Vu-Flow Rusco 3/4″ Stainless Steel Screen Filter System 100 Mesh

Description

The Vu-Flow/Rusco T-style screen filter spin down system is designed to be utilized in a wide variety applications.  Stainless steel mesh is a durable material perfect for cold water systems and applications using higher water temperatures or coarse particles. They are used for coarser sediment particulate where extremely dirty water is being filtered and a stronger filter is needed.  Sediment is visible through the clear filter cover making it easy to identify when the filter needs cleaning. Quickly and easily remove sediment by opening the ball valve at the bottom of the filter cover.

This complete filter system includes:

• A clear cover made of high impact polymer resin for maximum strength and durability
• The filter body (the top T-connection) made of PVC material with 3/4″ female threaded connections in and out
• 1/2″ ball valve and spool of thread seal tape
• A reusable stainless steel filter element in 100 mesh
• Filter system measures 11-3/8″L x 5″W

Please note!  T-style filter systems are identified by the port size and not by the diameter or length of the filter element.  This 3/4″ system indicates that the top inlet/outlet installation port (the “tee”) is 3/4″ PVC.  The screen element used in this 3/4″ filter system measures 5-1/2″x 1-3/16″.  Vu-Flow and Rusco are identical brands from the same manufacturer out of the same location in Brooksville, Florida.  Depending on your location you may receive Vu-Flow or Rusco branded items.

Stainless steel elements are available in 30, 60, 100, 140 and 200 mesh.  Browse our store to find other mesh options.  Which size mesh is best for your use?  In general, use the coarsest screen deemed necessary to filter the material you want removed. This will result in longer runs between blow-downs.  The manufacturer’s recommendations are provided in the chart below:
