Rain Bird XFDe On-Surface Dripline 0.9 GPH 12″ SPC 250 FT.

Description

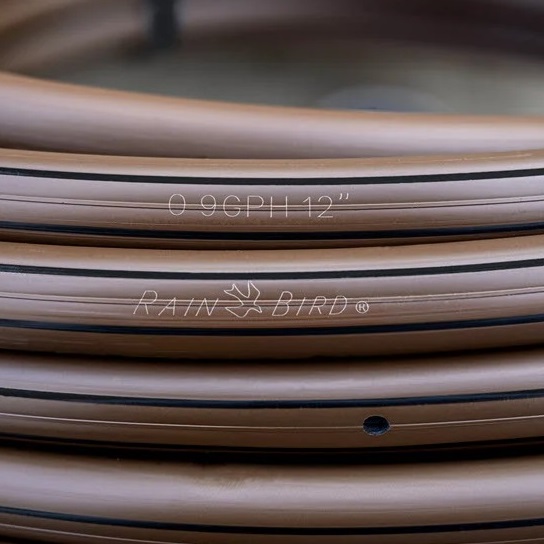

Rain Bird XFDe Dripline includes an advanced emitter design which enables extra-long lateral run lengths.  It is ideal for large zones where dripline laterals may exceed 400 feet or more.  Rain Bird’s patented round emitter design provides for increased reliability and reduces in-line pressure loss, therefore allowing for longer lateral runs than the competition.  This dual-layered tubing (brown over black) provides unmatched resistance to chemicals, UV damage, and algae growth.

The XFDe dripline is the most flexible, pressure-compensating inline emitter tubing available to irrigate ground cover, dense plantings, hedge rows and more.  Narrow and tight planting areas, as well as zones with tight curves or many switchbacks are no problem with XFDe, making it ideal for irrigating areas where traditional drip tubing is difficult to install.   The bend radius for XFDe dripline is 3” no matter which way you bend the tube.  Other driplines will bend 4” if bending with the natural curve of the coil and only 7” if bending against the natural curve of the coil.

250 foot roll.  Use with Rain Bird XF Dripline Insert Fittings, Easy Fit Compression Fittings, and other 17 mm barbed insert fittings.

Operating Range & Specifications:

• Pressure: 8.5 to 60 psi (,58 to 4,14 bar)
• Flow rate: 0.9 gph (3,5 l/hr)
• Temperature
  • Water: Up to 100°F (37,8° C)
  • Ambient: Up to 125°F (51,7° C)
• Required Filtration: 120 Mesh
• OD: 0.634”
• ID: 0.536”
• Wall Thickness: 0.049”
• 12” (30,5 cm) spacing
