Goulds GT15 1-1/2 HP Self Priming Centrifugal Pump

Description

The Goulds Water Technology IRRI-GATOR Model GT15 1-1/2HP self-priming centrifugal pump is built for dependability, efficiency, and easy maintenance. Once the pump is initially primed and filled with water, it will reprime when the water level rises above the end of the suction pipe. It’s electric motor features a back pull out design for easy servicing and a two compartment motor for easy access to motor wiring and replaceable components.

This pump is perfect for irrigation needs in residential and small commercial applications and for heat pumps, water transfer, air conditioning systems and dewatering. Can be operated continuously without damage. With carbon/ceramic faces, Buna elastomers. 300 series stainless steel metal parts. Diaphragm prevents the seal from running dry.

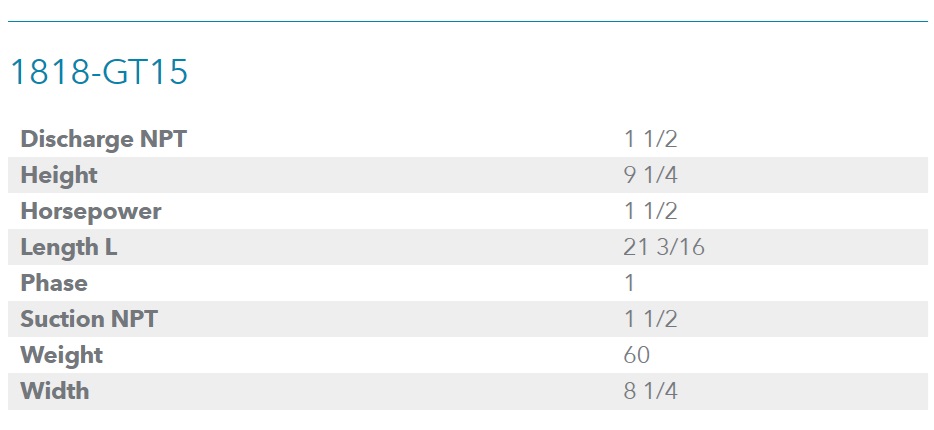

Specs:

• Discharge NPT:   1-1/2″
• Suction NPT:  1-1/2″
• Horsepower:  1-1/2HP
• LxWxH:  21-3/16″ x 8-1/4″ x 9-1/4″

Pump:

• Reprime capabilities: to 25 feet suction lift
• Maximum water temperature: 140° F (60° C)
• Maximum working pressure: 125 psi
• Rotation: clockwise when viewed from motor end

Motor:

• NEMA standard open drip proof
• 60 Hz, 3500 rpm
• Stainless steel shaft
• Single phase: 115/230 V

Click here to view the GT product line sheet from Xylem Goulds

Important!  The switchable 115V/230V motor is factory set at 230V.  To assure proper performance, pump installation must be performed by a person with the necessary skills and knowledge of your application.  Any damage to the pump that is deemed to be caused by improper installation may void any potential manufacturer warranty.
